| 防水型45°弯角混合连接器 |
| |
| |

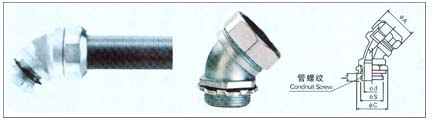

详细图解 ①：ΦA ②：L ③：Φd ④：ΦS ⑤：ΦC |
|
| 防水型45°弯角混合连接器规格表
| 型号 |
可挠金属套管规格 |
L
mm |
ΦA
mm |
ΦC
mm |
Φd
mm |
ΦS
mm |
管螺纹 |
| W45AG-15 |
|
15# |
12 |
37 |
32 |
14 |
20.5 |
G1/2" |
| W45AG-17 |
17# |
12 |
37 |
32 |
14 |
20.5 |
G1/2" |
| W45AG-24 |
24# |
12 |
47 |
43 |
20 |
26.1 |
G3/4" |
| W45AG-30 |
30# |
16 |
53 |
48 |
26 |
32.7 |
G1 |
| W45AG-38 |
38# |
16 |
63 |
54 |
33 |
41.0 |
G1 1/4" |
| W45AG-50 |
50# |
18 |
78 |
62 |
40 |
47.0 |
G1 1/2" |
| W45AG-63 |
63# |
18 |
92 |
78 |
52 |
59.4 |
G2" |
|
|
|
：
