| 防水型接线箱连接器 |
| |
| |

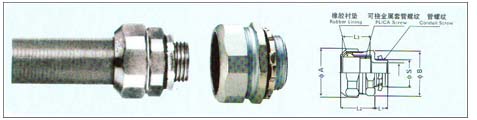

详细图解 ①：橡胶衬垫 ②：可挠金属套管螺纹 ③：管螺纹
④：ΦA ⑥：ΦS ⑦：ΦB ⑧：L1 |
|
| 防水型接线箱连接器规格表
| 型号 |
可挠金属套管规格 |
L1
mm |
L2
mm |
L3
mm |
ΦA
mm |
ΦB
mm |
Φd
mm |
ΦS
mm |
管螺纹 |
| WBG-12 |
|
12# |
12 |
24.5 |
27 |
37.0 |
34.0 |
14.5 |
20.9 |
G1/2" |
| WBG-15 |
15# |
12 |
24.5 |
27 |
37.0 |
34.0 |
14.5 |
20.9 |
G1/2" |
| WBG-17 |
17# |
12 |
23.5 |
27 |
37.0 |
34.0 |
14.5 |
20.9 |
G1/2" |
| WBG-24 |
24# |
12 |
25.5 |
30 |
46.0 |
42.8 |
19.7 |
26.4 |
G3/4" |
| WBG-30 |
30# |
16 |
29.0 |
33 |
54.0 |
50.5 |
25.8 |
33.2 |
G1" |
| WBG-38 |
38# |
16 |
33.0 |
37 |
64.0 |
60.0 |
34.3 |
41.9 |
G1 1/4" |
| WBG-50 |
50# |
18 |
34.5 |
38 |
78.0 |
73.5 |
40.0 |
47.8 |
G1 1/2" |
| WBG-63 |
63# |
18 |
37.0 |
44 |
92.0 |
90.0 |
52.0 |
59.6 |
G2" |
| WBG-76 |
76# |
18 |
42.0 |
48 |
108.0 |
104.0 |
67.5 |
75.1 |
G2 1/2" |
| WBG-83 |
83# |
20 |
42.0 |
49 |
121.7 |
115.8 |
77.8 |
87.8 |
G3" |
| WBG-101 |
101# |
33 |
52.0 |
57 |
145.0 |
150.0 |
88.5 |
113 |
G4" |
|
|
|
：
